EPS vs XPS for foundation insulation?

XPS is better below-grade due to its superior moisture resistance. EPS works above-grade and in EIFS systems where cost matters more.

Does EPS absorb water?

EPS absorbs more water than XPS due to its bead structure, but quality products perform well in most above-grade applications.

Is EPS environmentally friendly?

EPS is more environmentally friendly than XPS because it does not use HFC blowing agents. It is also recyclable in many areas.

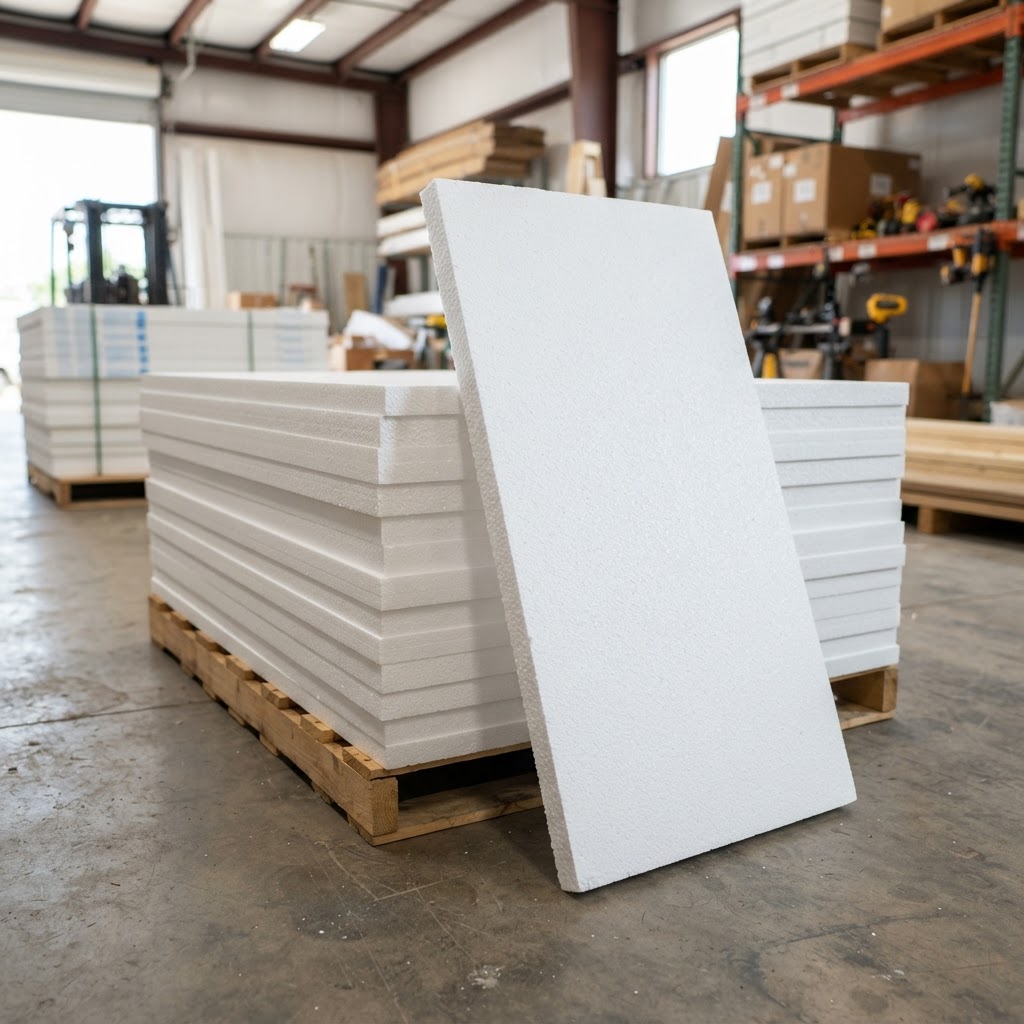

EPS Rigid Foam Board - building material

Insulation

Rigid Board

$0.25-$0.60 per sq ft per inch of thickness

EPS Rigid Foam Board: Affordable Rigid Insulation (2026)

Prepared by Lumberama's Building Materials Team

|Last updated July 25, 2026|Sources & methodology

Expanded polystyrene (EPS) rigid foam board is the most affordable rigid insulation option, providing approximately R-4 per inch. It is the same material used in ICF (insulating concrete form) construction and EIFS exterior systems. EPS is lightweight, easy to cut, and maintains its stated R-value over time without thermal drift.

Key Features

R-4 per inch; Most affordable rigid foam; No long-term R-value loss; Lightweight; Used in ICF and EIFS systems

Specifications

R-value: R-3.8 to R-4.2 per inch depending on density. Density: 1-2 lbs/cu ft. Compressive strength: 10-25 PSI. Sizes: 4x8 ft in 1/2 to 4+ inch thickness.

Applications

ICF construction; EIFS exterior systems; Under-slab insulation; Exterior wall sheathing; SIP panel cores

Installation Overview

Cut with hot wire or utility knife. Attach with compatible adhesive and mechanical fasteners. Tape joints with approved tape. Must be covered with ignition barrier or thermal barrier per code.

Pros & Cons

Pros

✓ Lowest cost rigid foam; Stable R-value over time; Very lightweight; Easy to cut; Versatile applications

Cons

✗ Lower R-value per inch than XPS; Higher moisture absorption than XPS; Beaded surface harder to tape; Less compressive strength; Crumbles when cut with knife

Top Brands

Insulfoam

Atlas

Benchmark Foam

Code Requirements

Must meet ASTM C578. Thermal barrier or ignition barrier per IRC R316. Below-grade use permitted but XPS is preferred for moisture resistance.

Buying Tips

EPS is the best value for above-grade applications where moisture is managed. Higher-density EPS (Type II or IX) offers better moisture resistance and R-value. Consider for large-area coverage where cost is critical.
